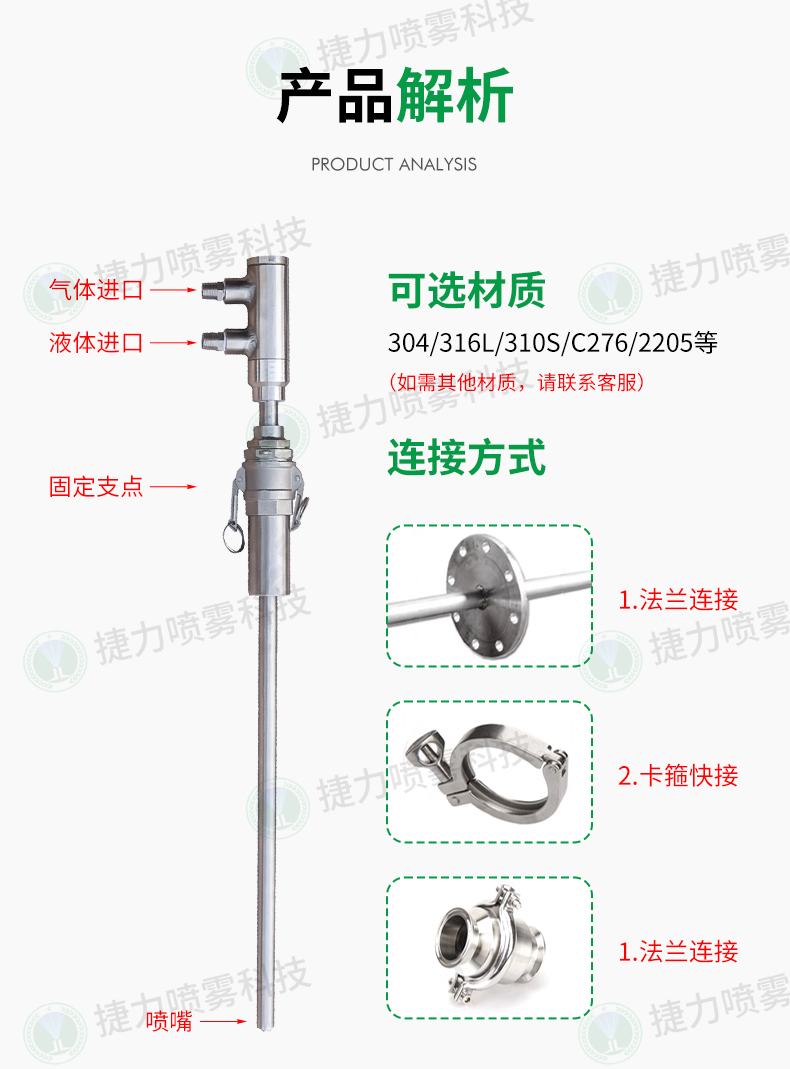

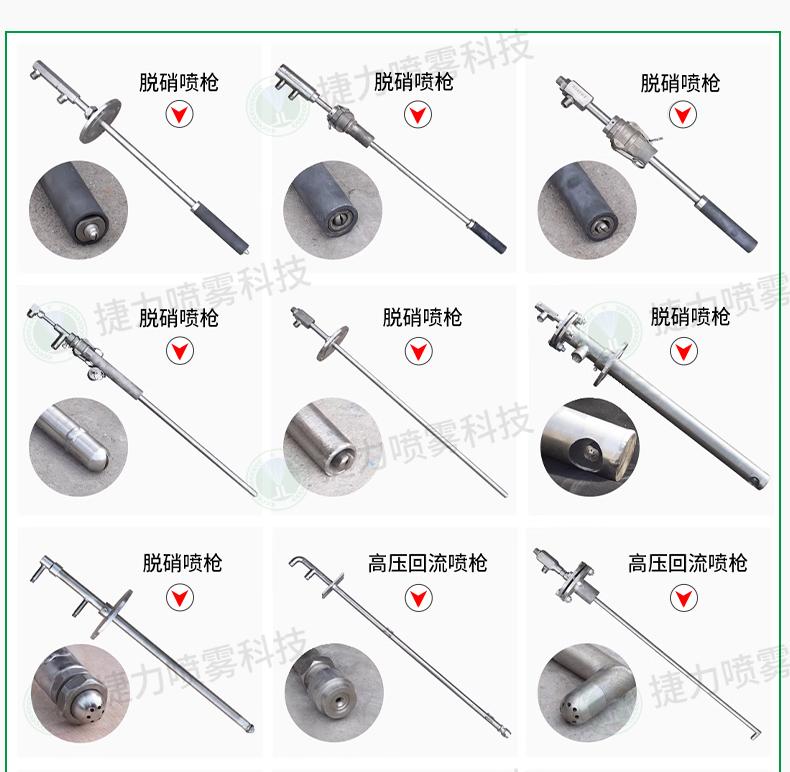

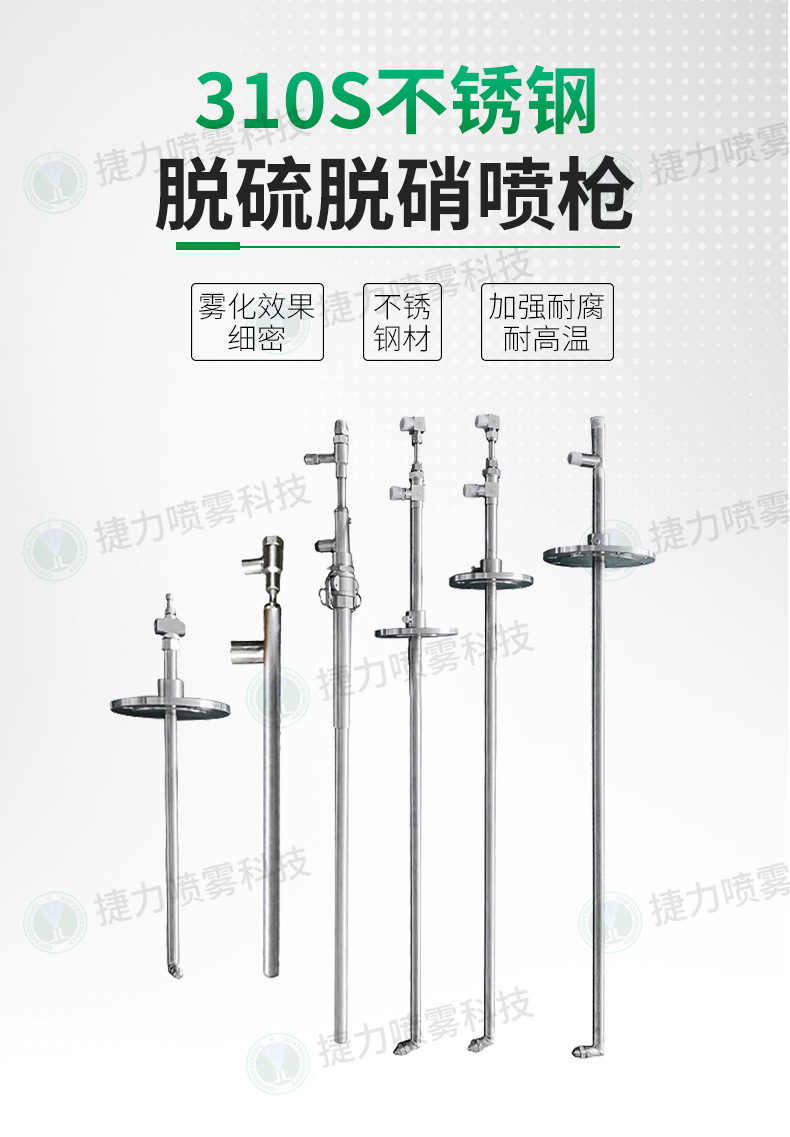

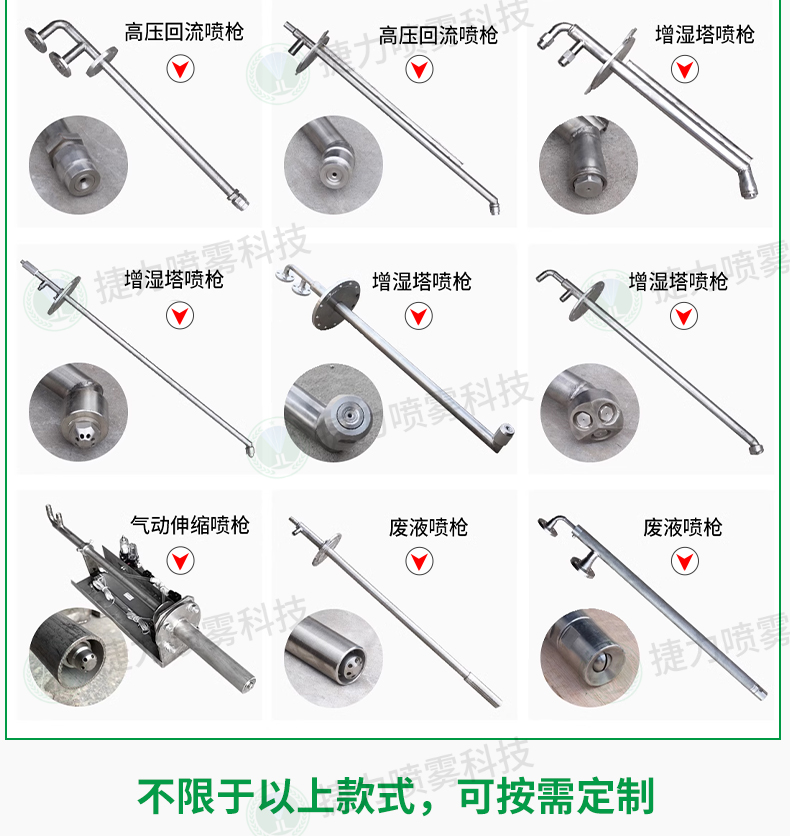

不锈钢脱硫脱硝喷枪
技术参数：

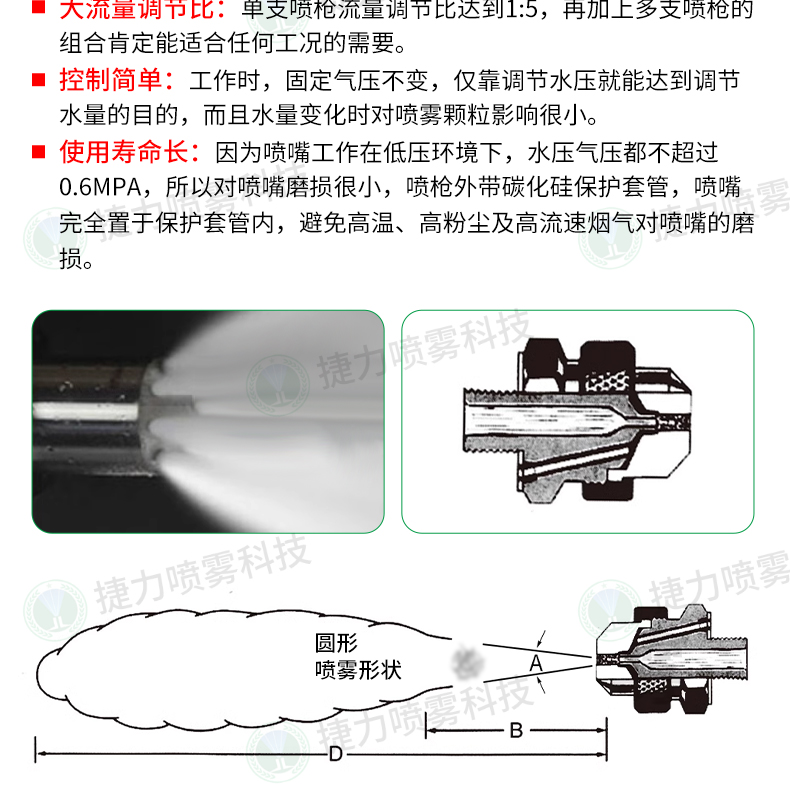

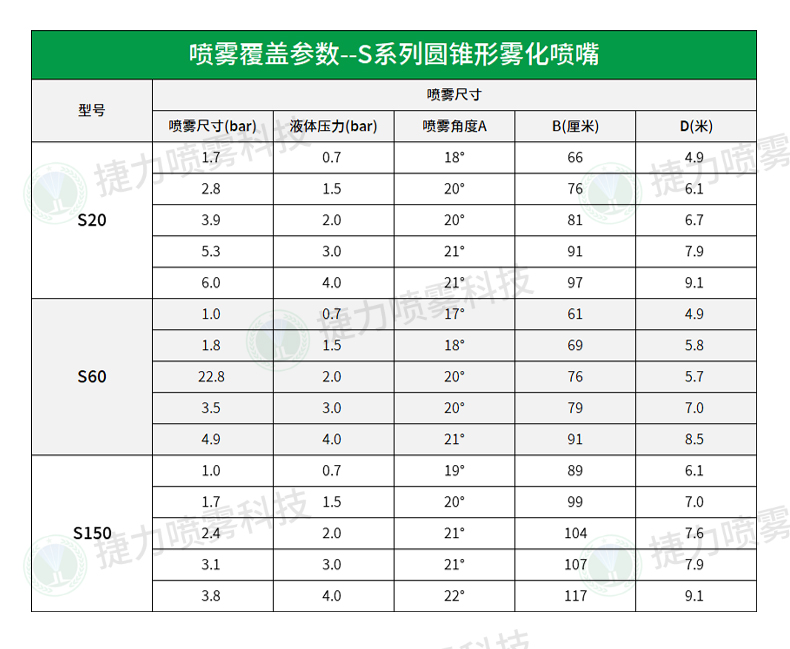

| 喷雾覆盖参数--S系列圆锥形雾化喷嘴 | |||||
|---|---|---|---|---|---|
| 型号 | 喷雾尺寸 | ||||
| 喷雾尺寸(bar) | 液体压力(bar) | 喷雾角度A | B(厘米) | D(米) | |
| S20 | 1.7 | 0.7 | 18° | 66 | 4.9 |
| 2.8 | 1.5 | 20° | 76 | 6.1 | |
| 3.9 | 2.0 | 20° | 81 | 6.7 | |
| 5.3 | 3.0 | 21° | 91 | 7.9 | |
| 6.0 | 4.0 | 21° | 97 | 9.1 | |
| S60 | 1.0 | 0.7 | 17° | 61 | 4.9 |
| 1.8 | 1.5 | 18° | 69 | 5.8 | |
| 2.8 | 2.0 | 20° | 76 | 5.7 | |
| 3.5 | 3.0 | 20° | 79 | 7.0 | |
| 4.9 | 4.0 | 21° | 91 | 8.5 | |
| S150 | 1.0 | 0.7 | 19° | 89 | 6.1 |
| 1.7 | 1.5 | 20° | 99 | 7.0 | |
| 2.4 | 2.0 | 21° | 104 | 7.6 | |
| 3.1 | 3.0 | 21° | 107 | 7.9 | |
| 3.8 | 4.0 | 22° | 117 | 9.1 | |
