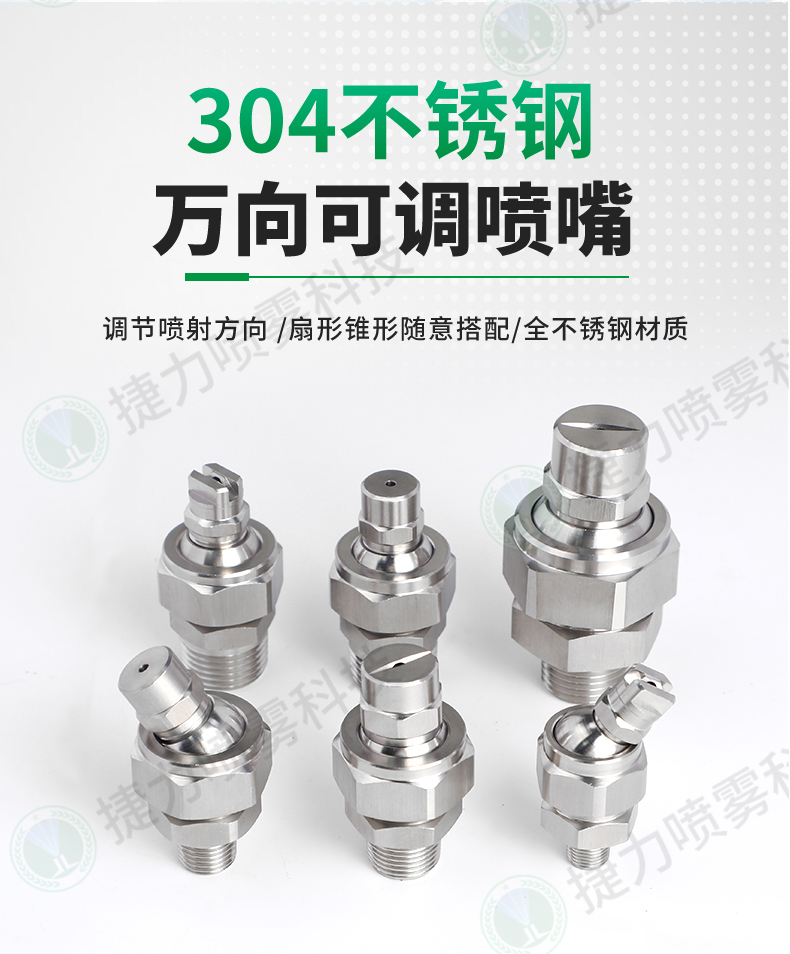

万向喷嘴

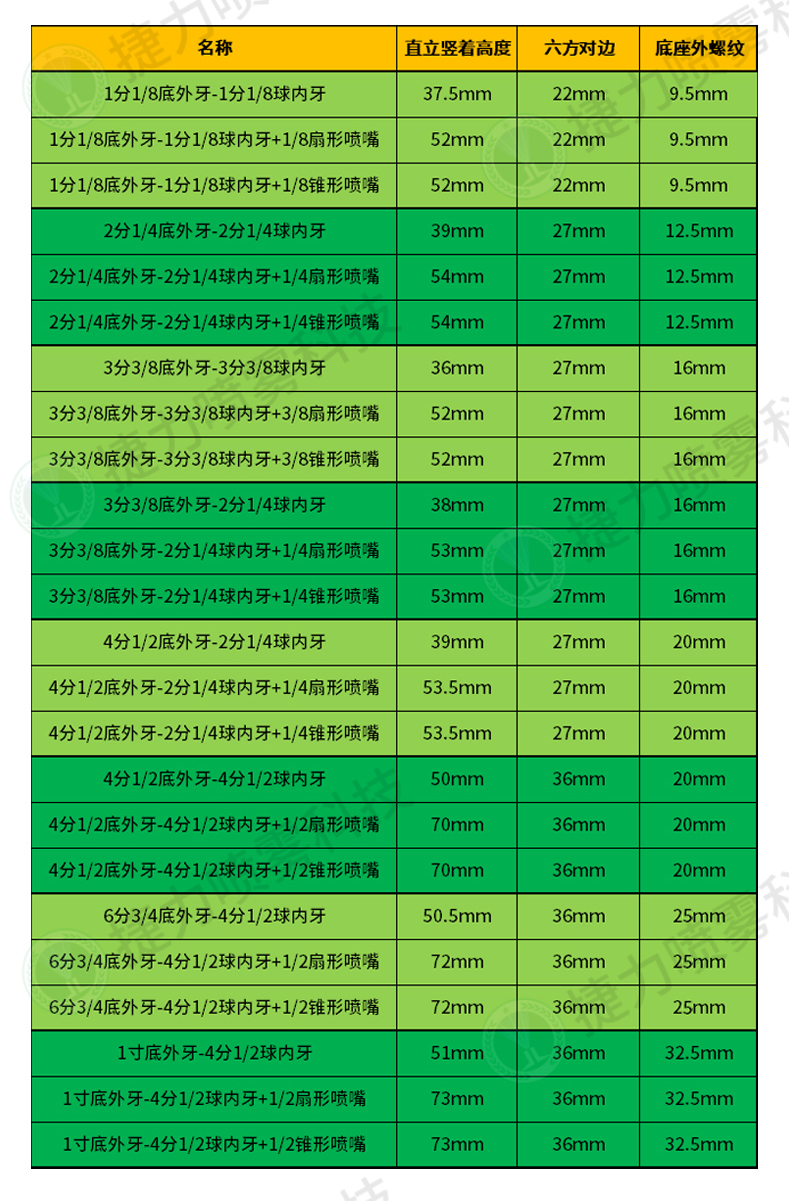

技术参数：
| 名称 | 自立型总高度 | 六方对边 | 底座外螺纹 |
|---|---|---|---|
| 1分1/8底外牙-1分1/8辟内牙 | 37.5mm | 22mm | 9.5mm |
| 1分1/8底外牙-1分1/8辟内牙+1/8锥形喷嘴 | 52mm | 22mm | 9.5mm |
| 1分1/8底外牙-1分1/8辟内牙+1/8锥形喷嘴 | 52mm | 22mm | 9.5mm |

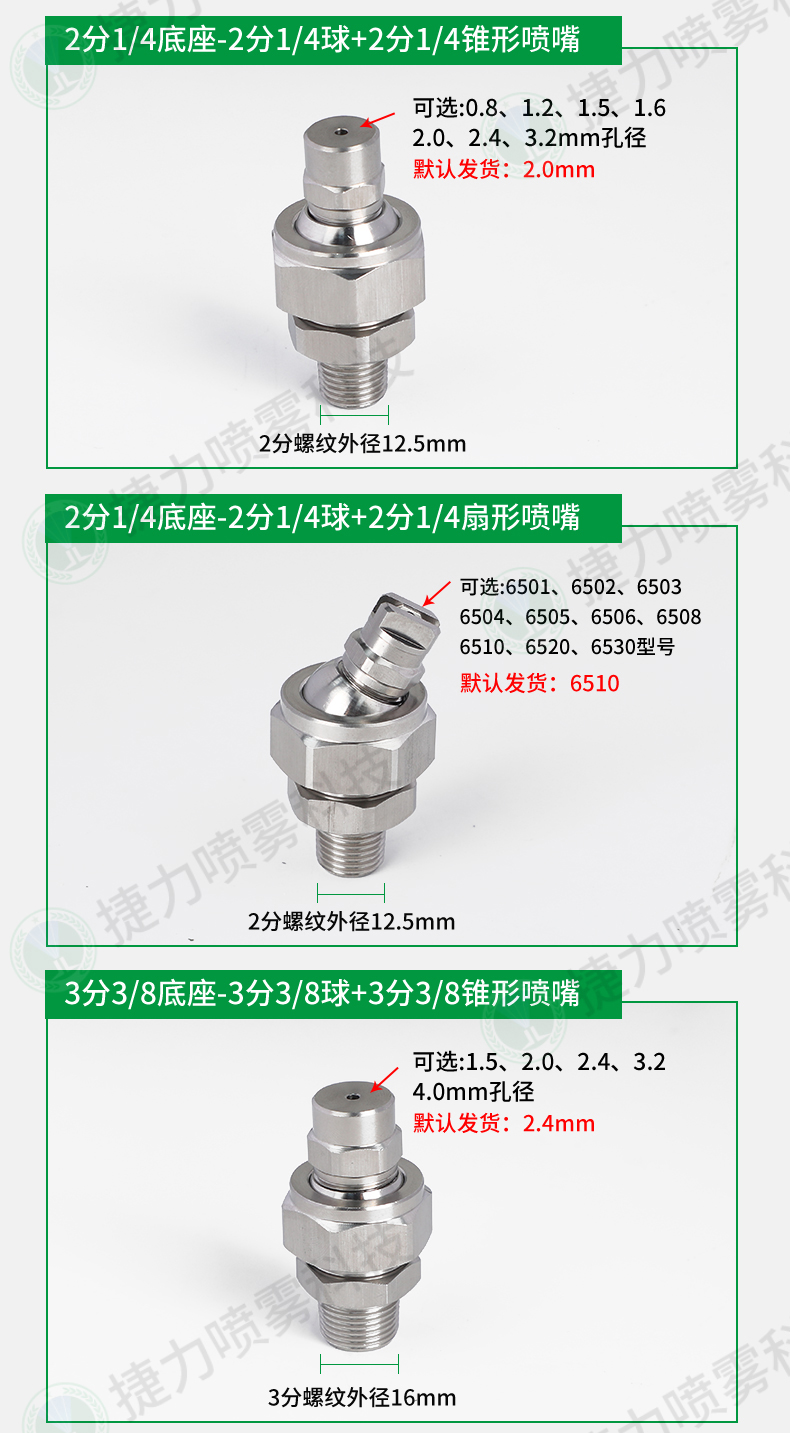

| 2分1/4底外牙-2分1/4辟内牙 | 39mm | 27mm | 12.5mm |
| 2分1/4底外牙-2分1/4辟内牙+1/4锥形喷嘴 | 54mm | 27mm | 12.5mm |
| 2分1/4底外牙-2分1/4辟内牙+1/4锥形喷嘴 | 54mm | 27mm | 12.5mm |

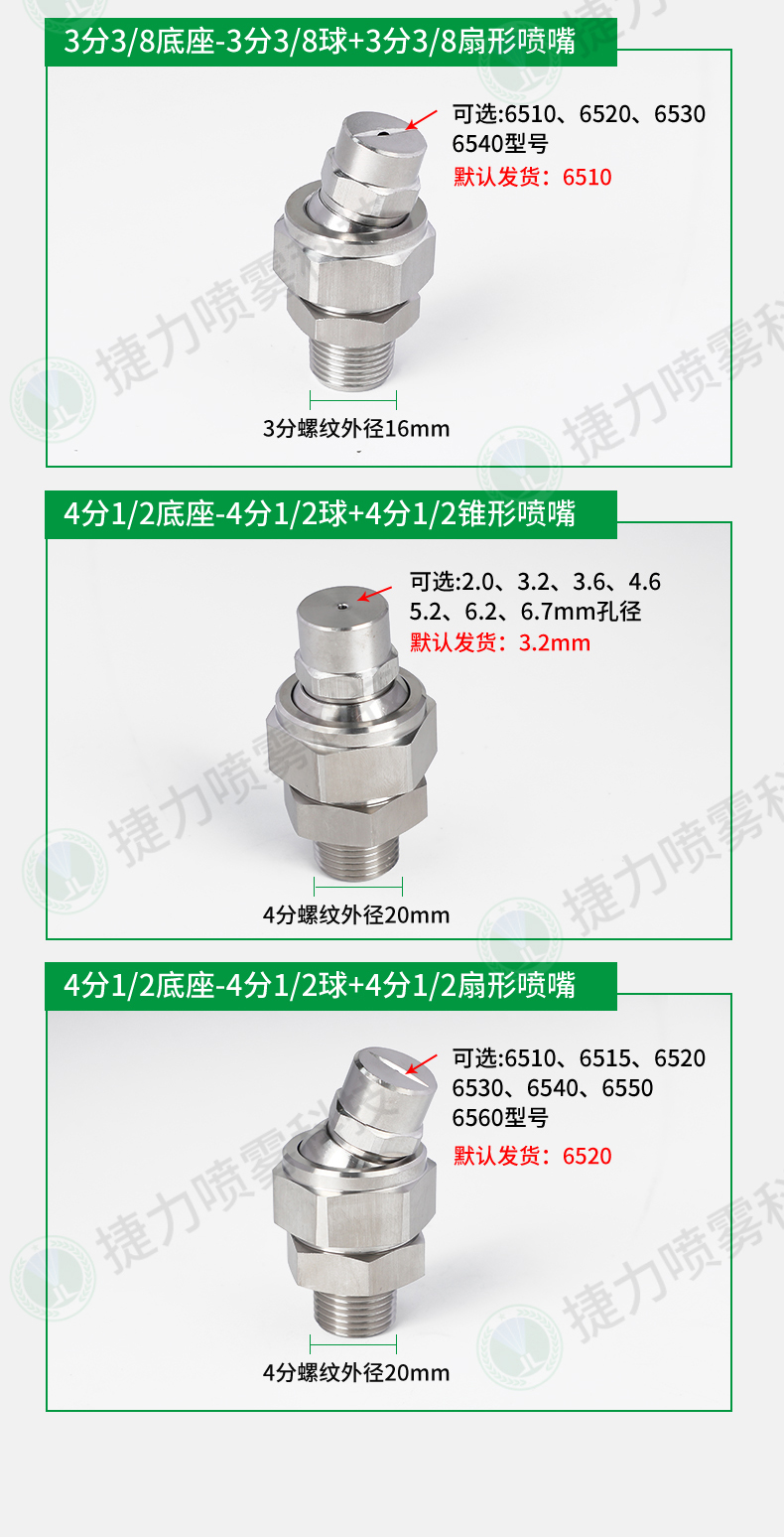

| 3分3/8底外牙-3分3/8辟内牙 | 36mm | 27mm | 16mm |
| 3分3/8底外牙-3分3/8辟内牙+3/8锥形喷嘴 | 52mm | 27mm | 16mm |
| 3分3/8底外牙-3分3/8辟内牙+3/8锥形喷嘴 | 52mm | 27mm | 16mm |
| 3分3/8底外牙-2分1/4辟内牙 | 38mm | 27mm | 16mm |
| 3分3/8底外牙-2分1/4辟内牙+1/4锥形喷嘴 | 53mm | 27mm | 16mm |
| 3分3/8底外牙-2分1/4辟内牙+1/4锥形喷嘴 | 53mm | 27mm | 16mm |
| 4分1/2底外牙-2分1/4辟内牙 | 39mm | 27mm | 20mm |
| 4分1/2底外牙-2分1/4辟内牙+1/4锥形喷嘴 | 53.5mm | 27mm | 20mm |
| 4分1/2底外牙-2分1/4辟内牙+1/4锥形喷嘴 | 53.5mm | 27mm | 20mm |
| 4分1/2底外牙-4分1/2辟内牙 | 50mm | 36mm | 20mm |
| 4分1/2底外牙-4分1/2辟内牙+1/2锥形喷嘴 | 70mm | 36mm | 20mm |
| 4分1/2底外牙-4分1/2辟内牙+1/2锥形喷嘴 | 70mm | 36mm | 20mm |
| 6分3/4底外牙-4分1/2辟内牙 | 50.5mm | 36mm | 25mm |
| 6分3/4底外牙-4分1/2辟内牙+1/2锥形喷嘴 | 72mm | 36mm | 25mm |
| 6分3/4底外牙-4分1/2辟内牙+1/2锥形喷嘴 | 72mm | 36mm | 25mm |
| 1寸底外牙-4分1/2辟内牙 | 51mm | 36mm | 32.5mm |
| 1寸底外牙-4分1/2辟内牙+1/2锥形喷嘴 | 73mm | 36mm | 32.5mm |
| 1寸底外牙-4分1/2辟内牙+1/2锥形喷嘴 | 73mm | 36mm | 32.5mm |
